U15DJKYC50U8R

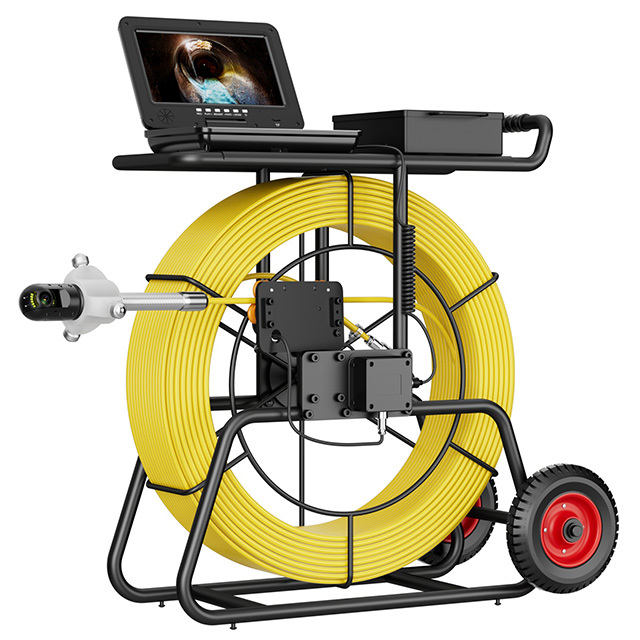

Sewer Camera Inspection 360 degrees 10″inch IPS+Cable diameter ø9mm+512HZ Transmitter Locator+Meter Counter+Keyboard

This product you are watching now is the latest popular, fashional, good looking and convenient ,The Drain Sewer Pipeline Industrial Endoscope System. It not only has a large and color screen, but also has a height definition camera which has AHD 1080P. 12 PCS LED with high while light(adjustable),PT function: horizontal 360 degree, vertical 180 degree，obtain more better quality image. With wheels, easy to move

1. Waterproof/360°PANNING NIGHT VISION:

The Drain Sewer Pipeline Industrial Endoscope System with AHD1080P high-definition waterproof IP68 Metal camera,Video AHD Camera with Vertical rotation 0-180 degree; Horizontal rotating0-360 degree，12 PCS LED with high white light(adjustable),

2. Monitor&CABLE&LONG BATTERY:

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 10 inches color TFT LCD monitor with a sun-visor for outdoor inspections. The material of wire is fiberglass rod(diameter: 9MM),anti-corrosion/cold/tensile. 12V 4500mAh Li-battery included supports approximate 6 hours of continuous use.

3. 512HZ TRANSMITTER:

This transmitter is suitable for locating the damage place of underground pipes, air-conditioning pipes and other pipes,will work with any 512Hz receiver.

4. 512HZ Receiver Technical Parameters：

Receiver Frequency: 512HZ

Distance: about 5m

Battery: 3.7V 3000MAH built-in lithium battery

Charger: 5V1A

Battery Indicator：4 gear,it is flashing when battery is low

Battery working time：about 10 hours

Signal strength：6 gear

Speaker：Support

Detect Mode : Far/ Near

5. Video + Audio + 5X Image Enlarge:

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,8GB TF card included,it is available to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. (DVR Edition Video Format :AVI Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times

6. Keyboard +Meter Counter :

Text writing will show on the screen and can be keep in the video when recording. Simultaneous display/cleared Metric and Feet.

7. VERSATILE:

Drain Pipe/Sewer Pipeline Inspection Snake Camera can be used under floors, inside walls, attics, gutters and roof even and can even be used to view mold and water damage. Pipe Sewer Industrial Endoscope Pipe Video Inspection System also applicable to air-conditioner pipe, vacuum pipeline,Sunken pipe etc.It is convenient to use and avoid danger at the utmost.

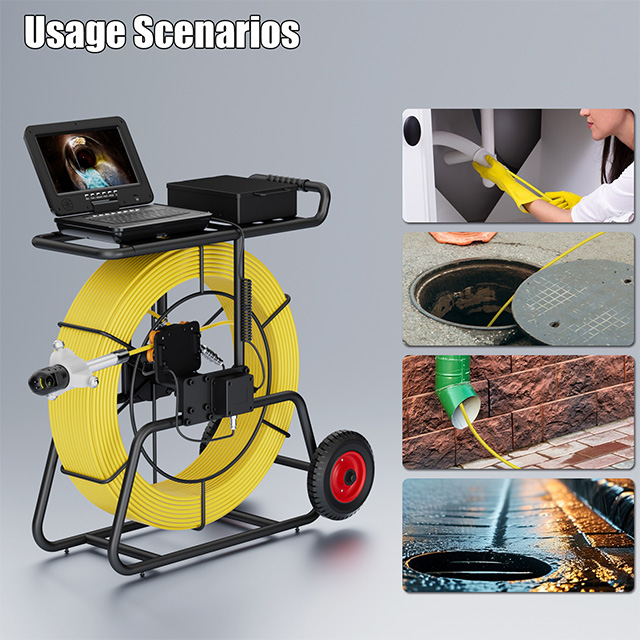

Applications:

Blocked / slow draining plumbing.

Wall / wire inspection.

Home owners inspection.

Feature:

Monitor:

Size：10 inch

Function: Video record/audio/photo/power display/ meter counter/keyboard input (support English)

Camera/Monitor image: Color

Monitor input voltage: DC 12V

TF Card: Max support 16 GB card; includes 8G card

Display Resolution:1024*600 IPS 720P

Menu: Chinese /English Optional

Display Operation: Press button

Video format: AVI

Photo format: JPG

Camera:

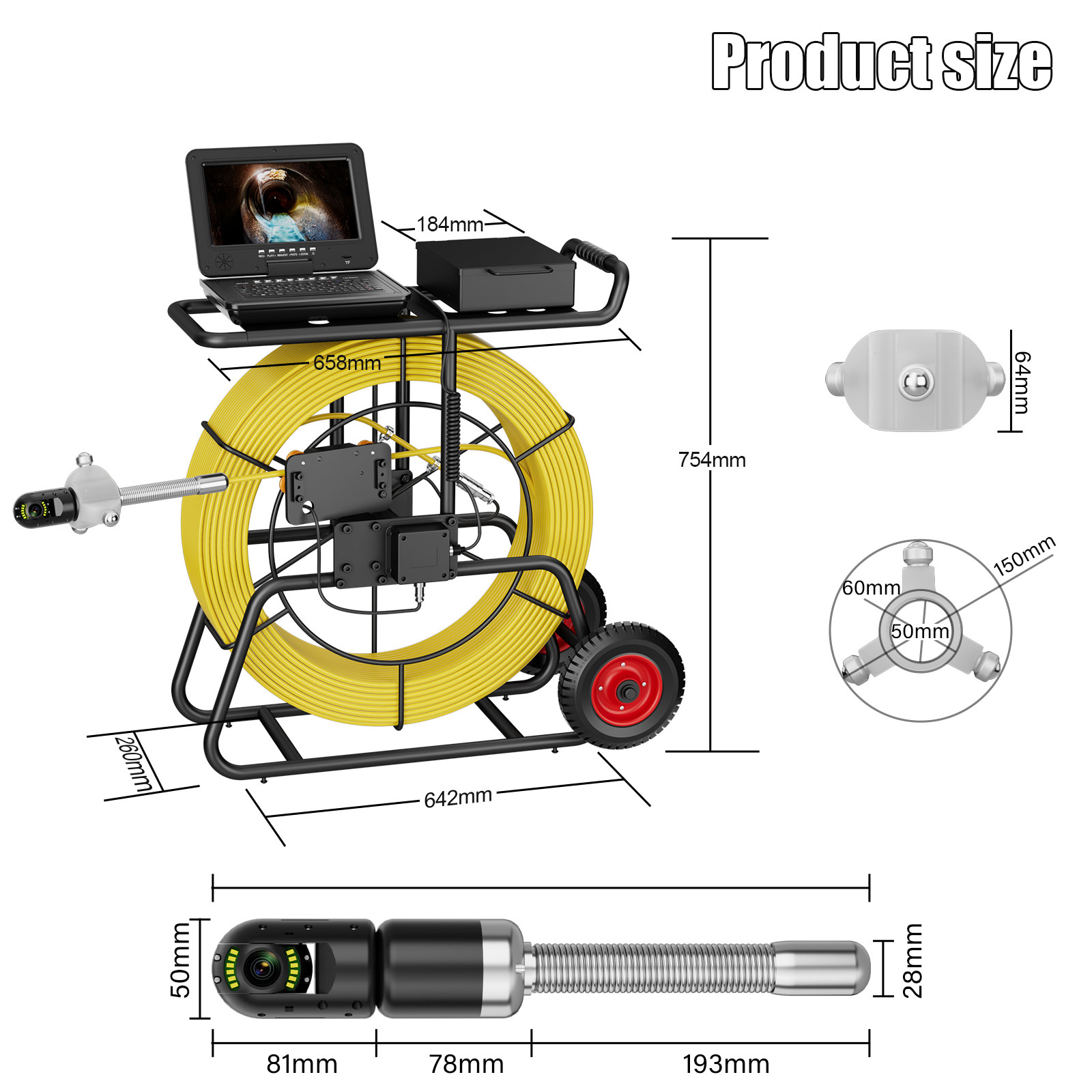

Camera size: 50x160mm

View Angle: 145 degree

Camera Light: 12 pcs highlight LEDs

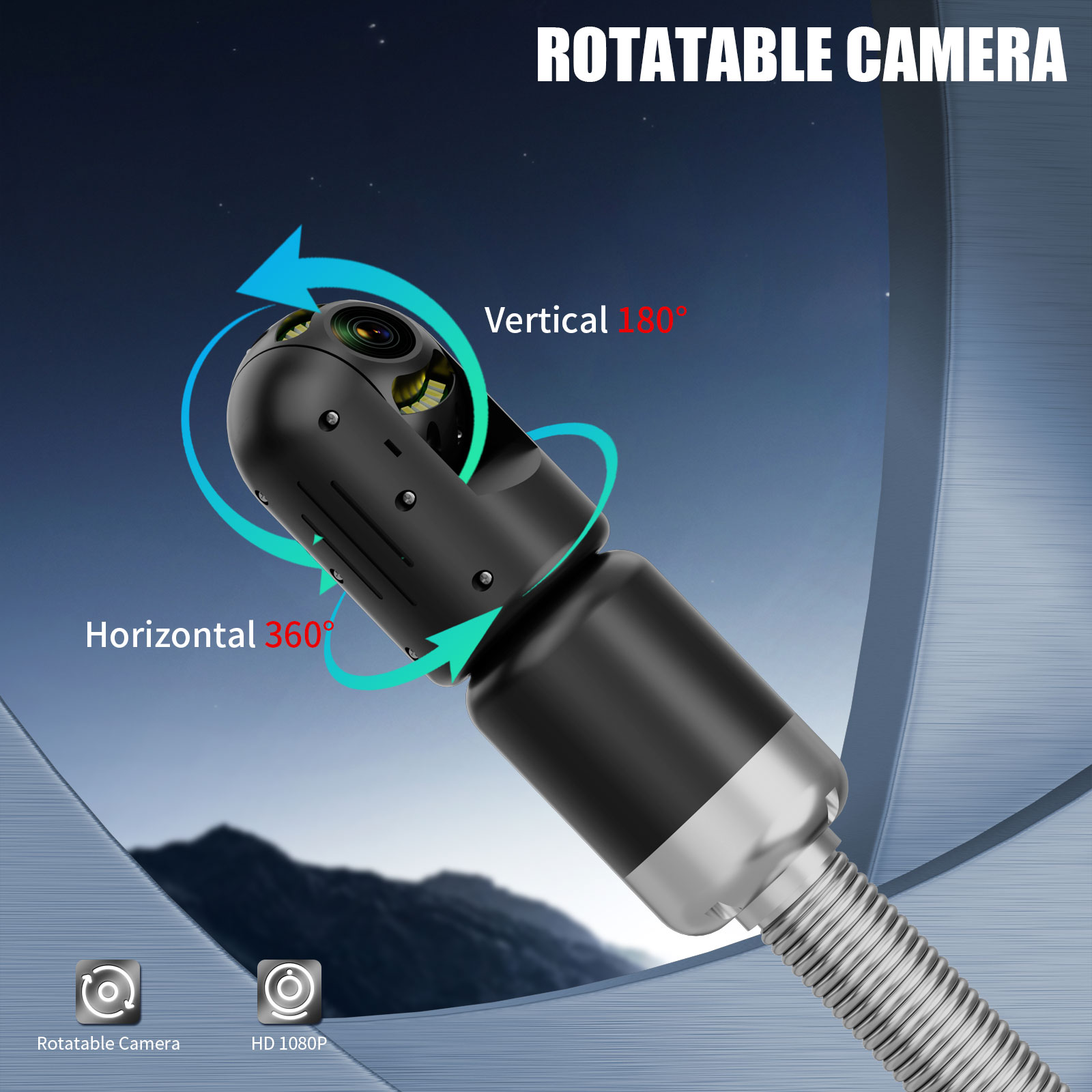

PT function: horizontal 360 degree, vertical 180 degree

Resolution: AHD 1080P

Glass material: Sapphire glass

Shell material: Aluminum alloy & stainless steel

Focus distance: 10CM

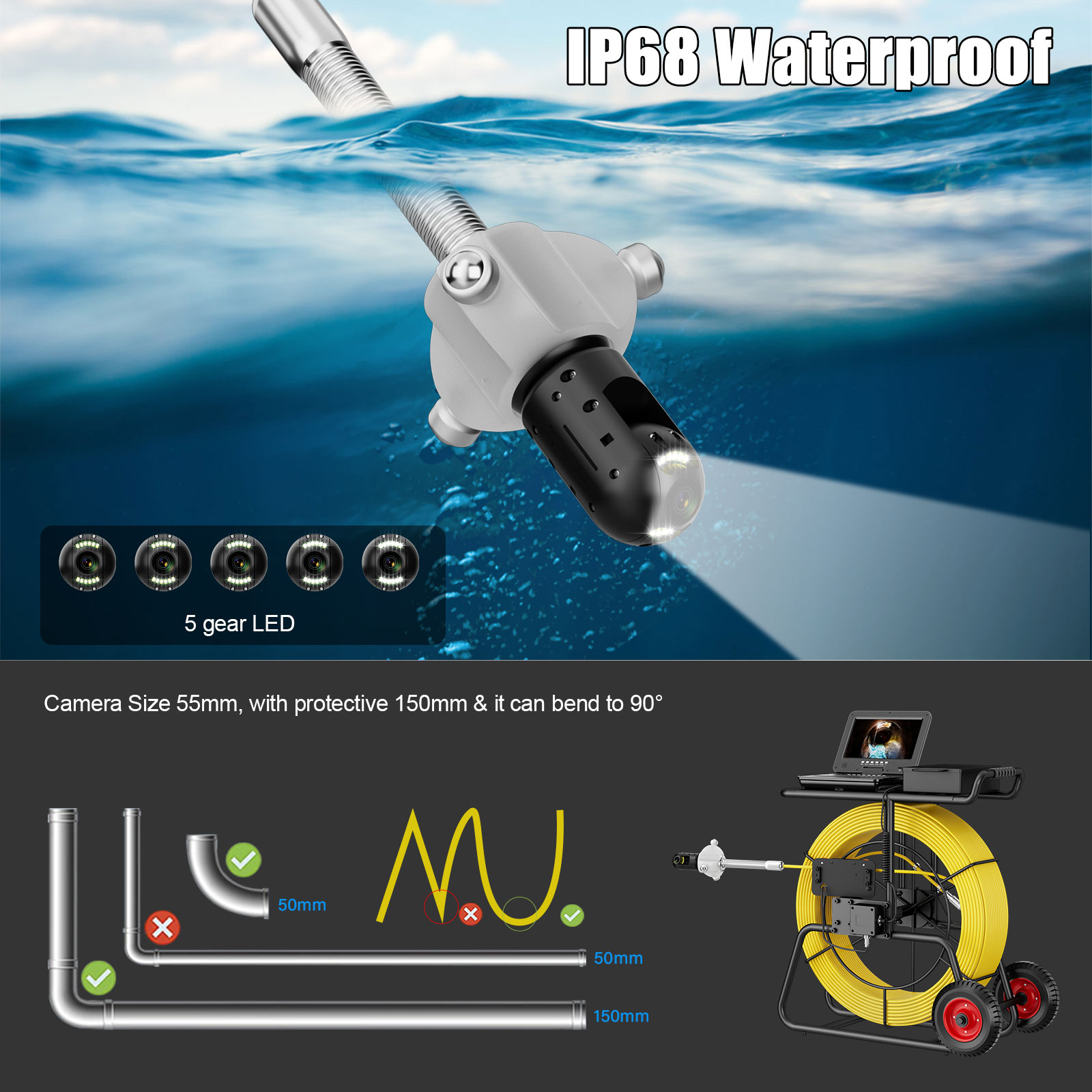

Waterproof: IP68

512hz sonde include

50MM rotating camera for ø150 - 600mm

Power supply

charger AC100V-240V / DC12.6V 1000mA

battery storage 4500mah

continuous use time for battery approximate 6h

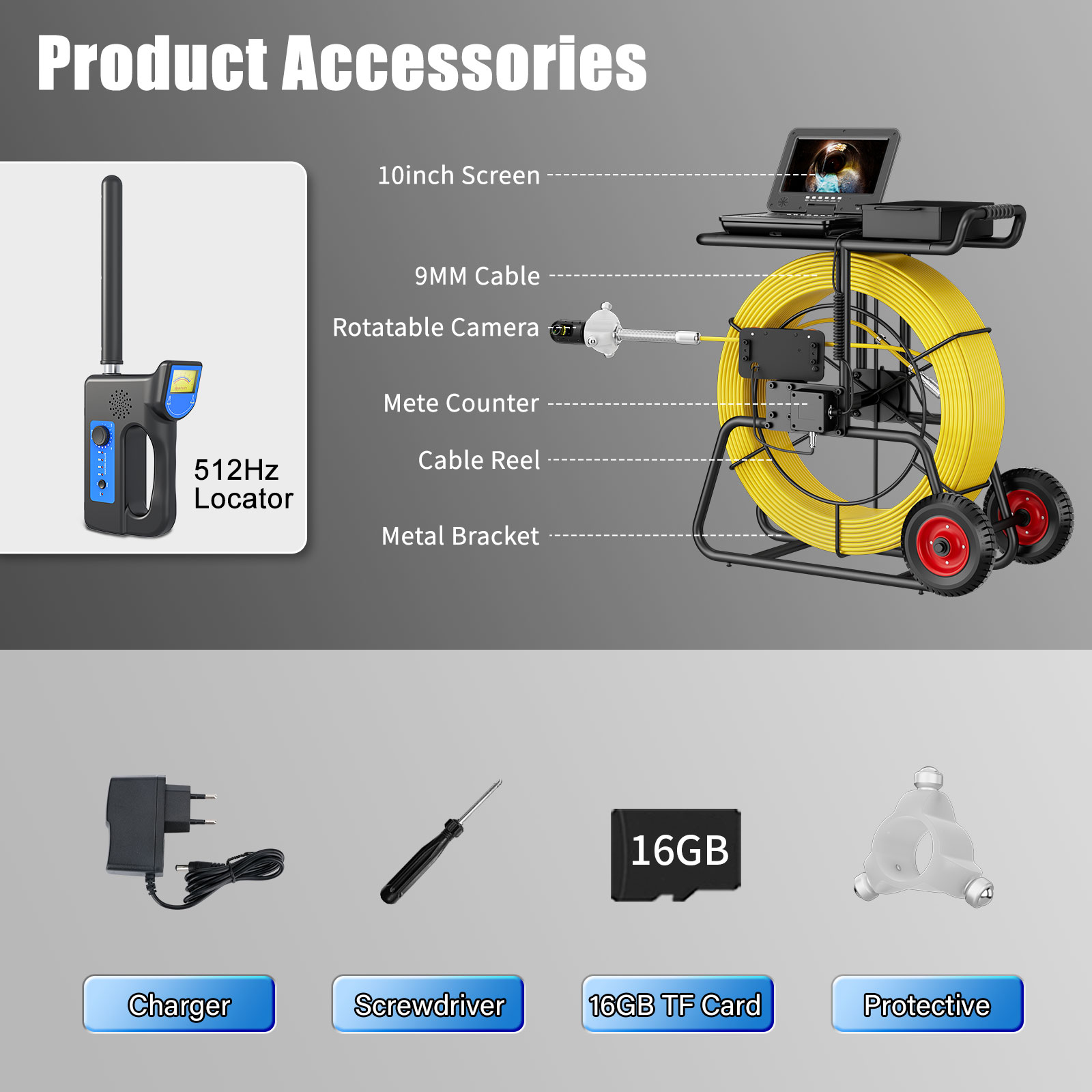

Package Content

1*10 inch IPS Monitor(DVR)

1 *Rotation camera

1 * 512HZ Locator

1 *16GB TF Card

1 * 200M Fiberglass Cable (Diameter 9MM Cable Max 200m)

1 *Camera Proof Cover

1 *4500mah Battery Box

1 *Charger

1 *Connection Cable

1 *Screw Driver

1* Keyboard

1 *User Manual (English)
